Stainless Steel Grates and Other Services in Sydney

Product Options:

options colored

Lineal Drain:

lineal drain
Lineal Drain - Contemporary look for bathrooms, balconies, paved areas, swimming pools.

Please click here for Spec Sheet

Tile Insert:

tile insert straight
Tile Insert - Custom-made to suit your tile sizes.

Please click here for Spec Sheet

Swimming Pool Skimmer Tile Insert:

Swimming pool skimmer tile inserts are designed to conceal and complement your pool surroundings.

Please click here for Spec Sheet

Slot Drain:

Our slot drains are custom made for every application they are designed for a minimal visual impact.

Please Click here for Spec Sheet

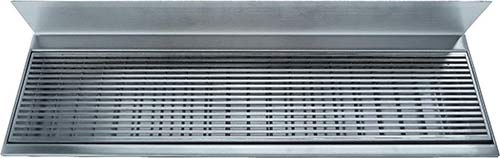

Wide Waterproofing Flanges:

wide waterproofing flanges
Wide Waterproofing Flanges - Where waterproofing is necessary. Lineal wedge wire grate made with wide built-in flashings to horizontal and vertical surfaces.

Please click here for Spec Sheet


Threshold Lineal wedge wire grate with an integrated concealed channel section which connect all sub-sill sections. The system allows threshold to be drained away with a zero step.

Traffic Drain:

traffic drain
Traffic Drain - Complete with concrete ties and angle frame ends to enclose framework.

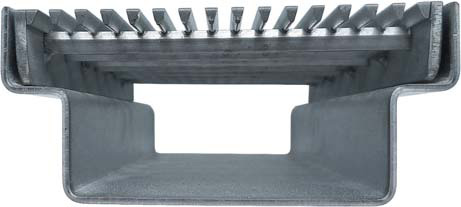

Heavy Duty External Grate & Trough:

ext grate trough

EasyFlow Wedge Wire - Large sump area and wider water catchment.

Please click here for Spec Sheet

Tile Insert/Floor Waste:

tile insert floor waste
Tile Insert Floor Waste - Also available with wedge wire.

Please click here for Floor Sump Waste Spec Sheet

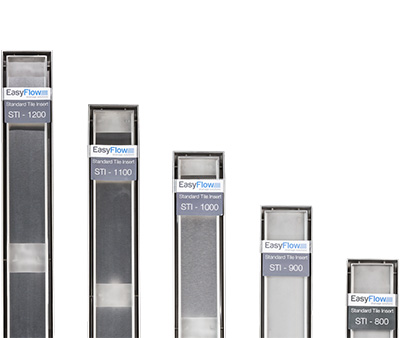

Standard Tile Insert:

Our standard Tile Insert includes sizes 800mm, 900mm, 1000mm, 1100mm, and 1200mm with a fully welded 89mm spigot to centre.Please note there are no modifications to our standard Tile Insert range. Customised Tile Inserts are available on request.

Click here for Standard Tile Insert Spec Sheet

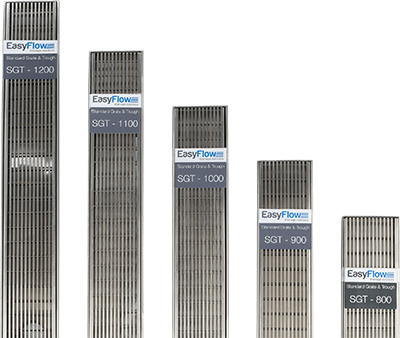

Standard Grate & Trough:

Our Grates are made from a wedge shaped wire designed to reduce blocking and also has a high drainage flow. Wedge wire’s slim line appearance compliments any application, is resistant to the elements and provides a long lasting drainage solution.

Click here for Standard Grate & Trough Spec Sheet

Floating Floor Waste:

Floating Floor wastes are typically used in commercial and Industrial settings. Dimensions can be manufactured to site specifications.

Click here for Floating Floor Waste Spec Sheet

Lint and Hair Removable Basket & Grate Key Lifter:

basket and key
Lint and hair basket and grate key lifter - Use the key to lift the wedge wire and remove the basket for cleaning.

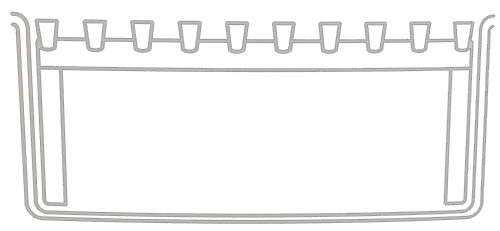

Wedge Wire Profile:

Wedge shaped wire designed to reduce the possibility of clogging or blocking. Wedge wire grating also has a high flow characteristic making it ideal for drainage and wash-down areas. It also provides a substantial clear opening in ratio to the overall surface area of the grate. Wedge wire’s slimline appearance compliments any application, is resistant to the elements and provides a long-lasting drainage solution. All grates are available in 316, 304 and Electropolish.
